NEW SWARM MESA®

In-Place Monitoring System

Efficiency

SWARM MESA® collects short or long-term Missions detecting, alerting, logging, and analyzing RF/WiFi activity in Areas Of Interest (AOI). SWARM MESA® quickly observes where and when RF events occur and alerts when devices transmit. The MESA® spectrum analyzers can also be used to sweep AOIs capturing transmission data and locating suspect devices.

Usability

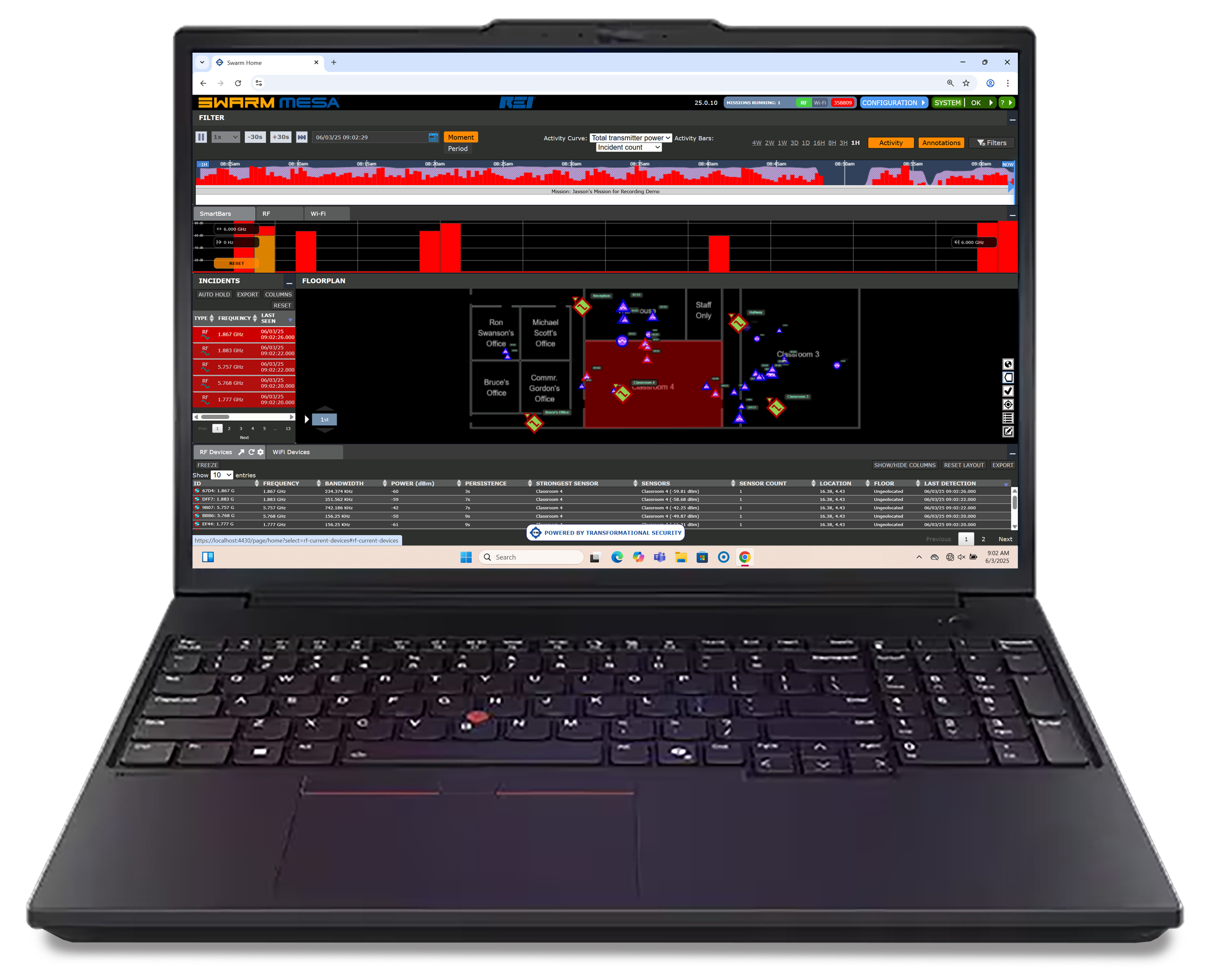

The SWARM software is pre-installed on a laptop, ready to network and begin collecting RF/WiFi data. SWARM MESA® is designed with ease of use in mind.

Portability

SWARM MESA® is easy to transport and deploy. It comes complete with everything needed to set up and operate, including four MESA® spectrum analyzers, antennas, cables, laptop and software packed in hard shell transportable cases.

Features

  • Provides live short/long term 24/7 RF & WiFi monitoring

  • Portable IPMS

  • Modular for adapting to target environment

  • Inside/outside Geo-Location

  • Each MESA independently sweeps 6GHz 33 times a second (200 GHz/sec)

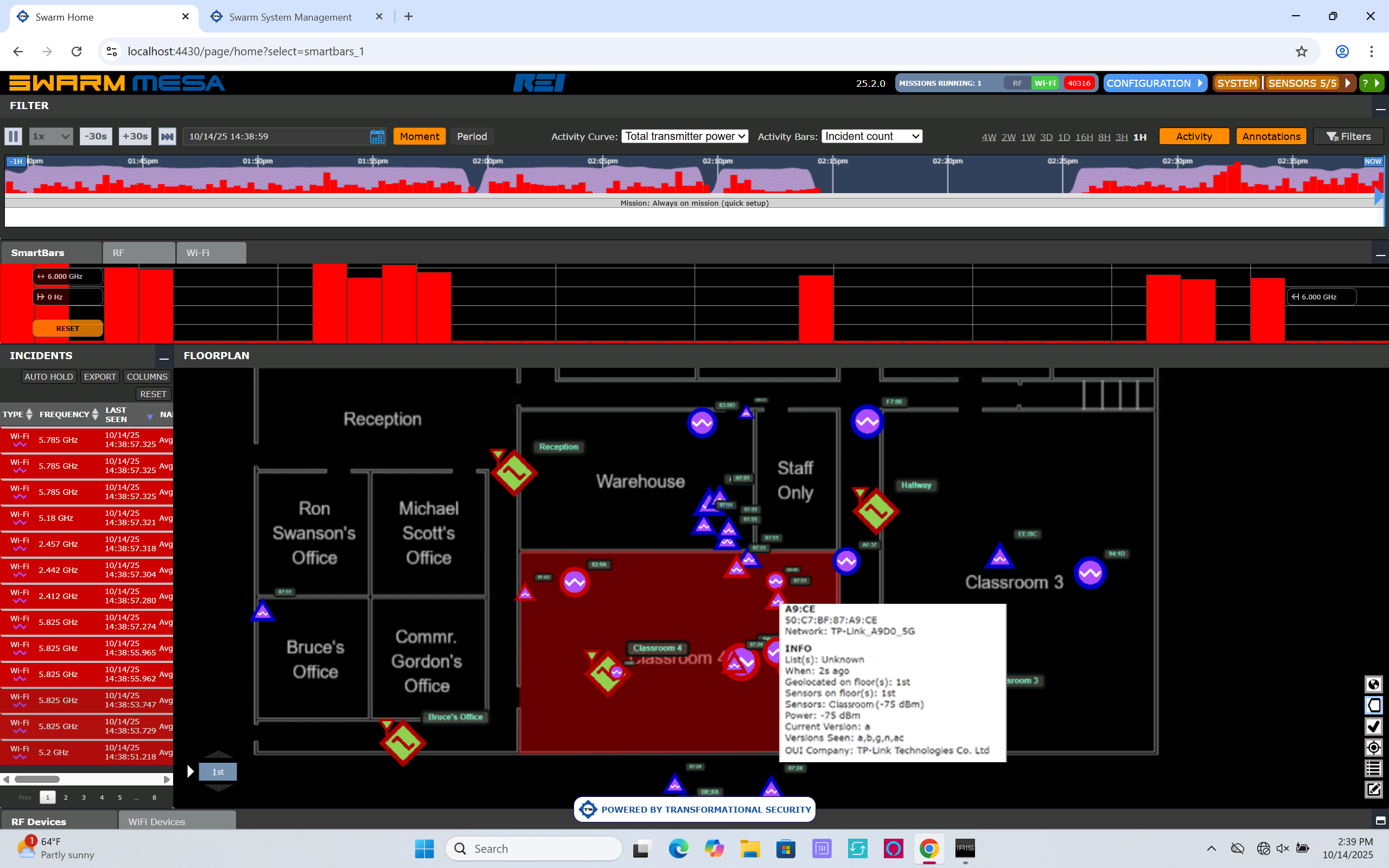

  • Signal localization (heat mapping)

  • Signal classification

  • Live monitoring

  • Continuous event recording

  • Playback, Data logging and event analysis

  • Mission scheduling

  • Quick setup guide

  • Alerts warnings and notifications

  • MESAs can be used to physically locate devices

  • Part of a layered TSCM strategy

  • Expandable

  • Cable Kit – included with SWARM MESA®

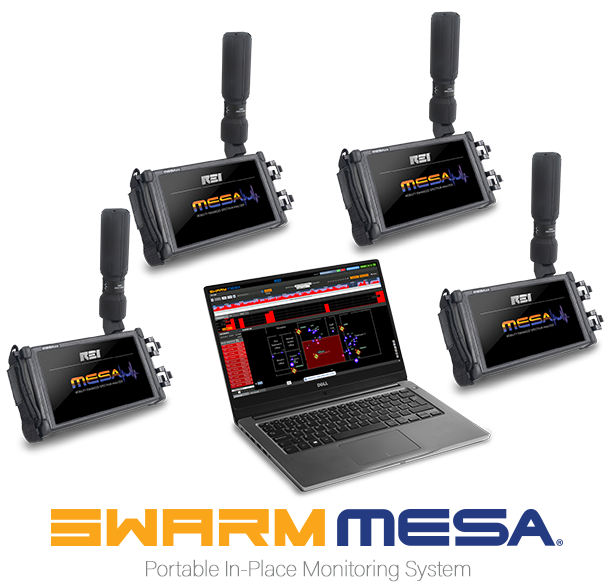

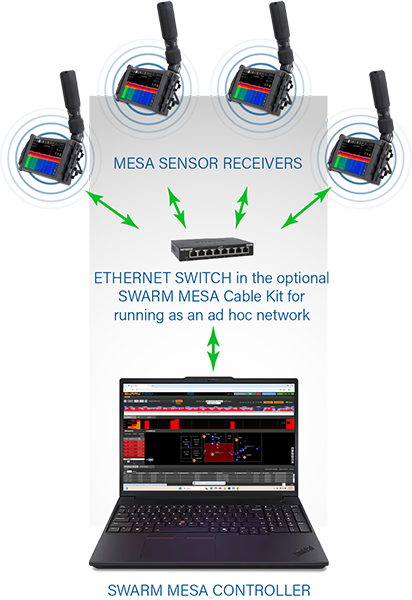

SWARM MESA® is a portable, easy to transport, in-place monitoring system networking multiple MESA® spectrum analyzers to a SWARM software controller.  The SWARM MESA® network provides continuous 24/7 RF and WiFi monitoring of structures, environments and events to detect and localize known, unknown and undesirable transmissions.

Applications

  • Technical Surveillance Countermeasures (TSCM) – detecting RF/WiFi eavesdropping transmitters

  • Monitoring sensitive rooms or facilities for RF emissions

  • Monitoring for unauthorized wireless or cellular activity

  • Continuous surveillance of advanced threats

  • Preventing unauthorized IOT devices from stealing operational data

  • Monitoring power plants, pipelines, or refineries for interference

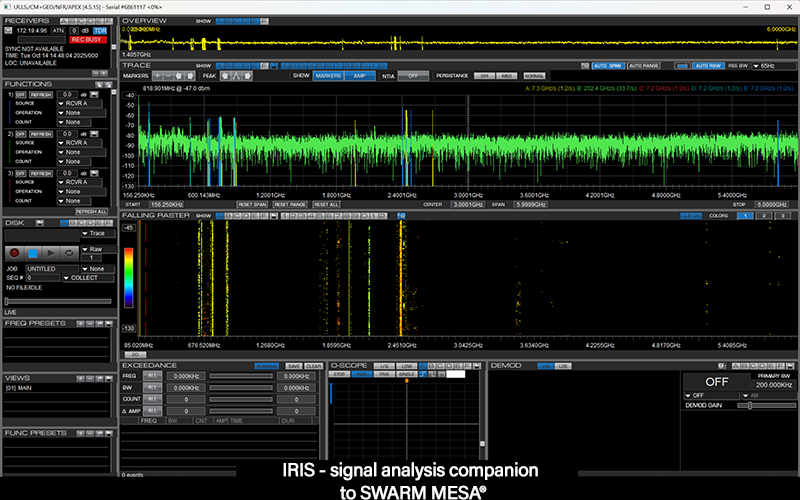

  • Spectrum analysis

  • Executive Protection

Specifications

  • SWARM MESA Kit
    SWARM installed Laptop (Controller)
    Power adapter: 135W USB-C Slim (3-pin)
    Dimensions: 14 x 10 x .083in / 36 x 25 x 2cm
    Weight: 4lbs./1.82kg
    Operating System: Windows 11 Pro

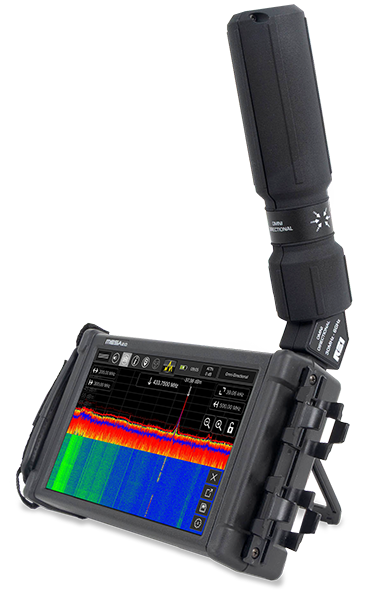

  • 4 MESA® Spectrum Analyzers:  See MESA 2.0

  • 4 Fixed Omnidirectional Antennas:

    • Frequency: 30MHz to 6GHz
      ​Connector:  QMA

  • 4 Li-ion batteries: 10.8V, 3350mAH, 36.20Wh
    4 Power Supply Adapters: 15V, 3A w/int’l adapters

  • Optional antennas available

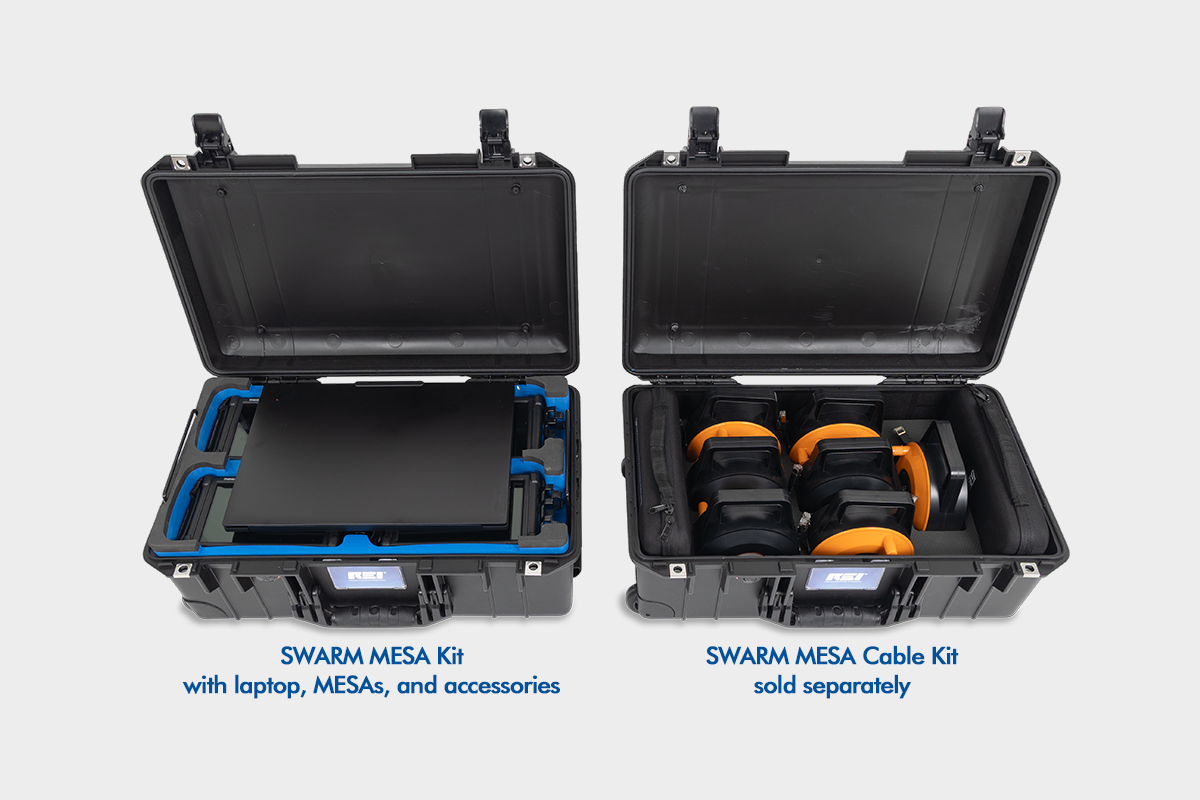

  • Hardshell case with custom cut foam insert
    Weight: 30lbs./14kg.
    Case dimensions: 22 x 14 x 9in / 56 x 36 x23cm

  • SWARM MESA Ethernet Cable Kit – sold separately
    Ethernet switch:

    • Gigabit

    • DC input/12v /0.5A

    • 10/100/1000Mbps ports : 8

  • Retractable Ethernet cables (7):

    • Length: 50ft/15m

    • Spool dimensions : 3 x 5.1 x 6.5in/8 x 13 x 58cm

  • Hardshell case with custom cut foam insert
    Case weight: 22lbs/10kg
    Dimensions: 22 x 14 x 9in / 56 x 36 x 23cm
