TTK

Tactical TSCM Kit

MESA 2.0

Hand-held Spectrum Analyzer for portable RF analysis up to 6 GHz (12 GHz with Downconverter Antenna).

ANDRE

Broadband Detector for near field detection and location of RF transmitters up to 6 GHz (12 GHz with Downconverter Antenna).

ORION 2.4 HX

Non-Linear Junction Detector for finding hidden electronics (active and inactive) (FCC 3.3W or G 6.6W).

Features

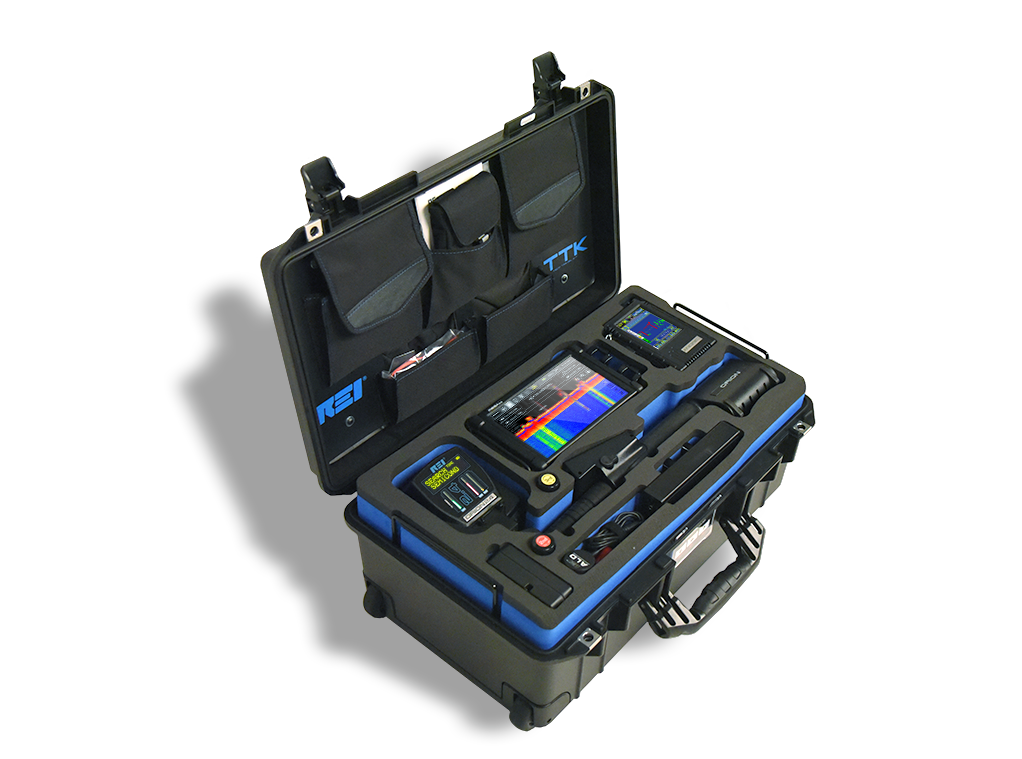

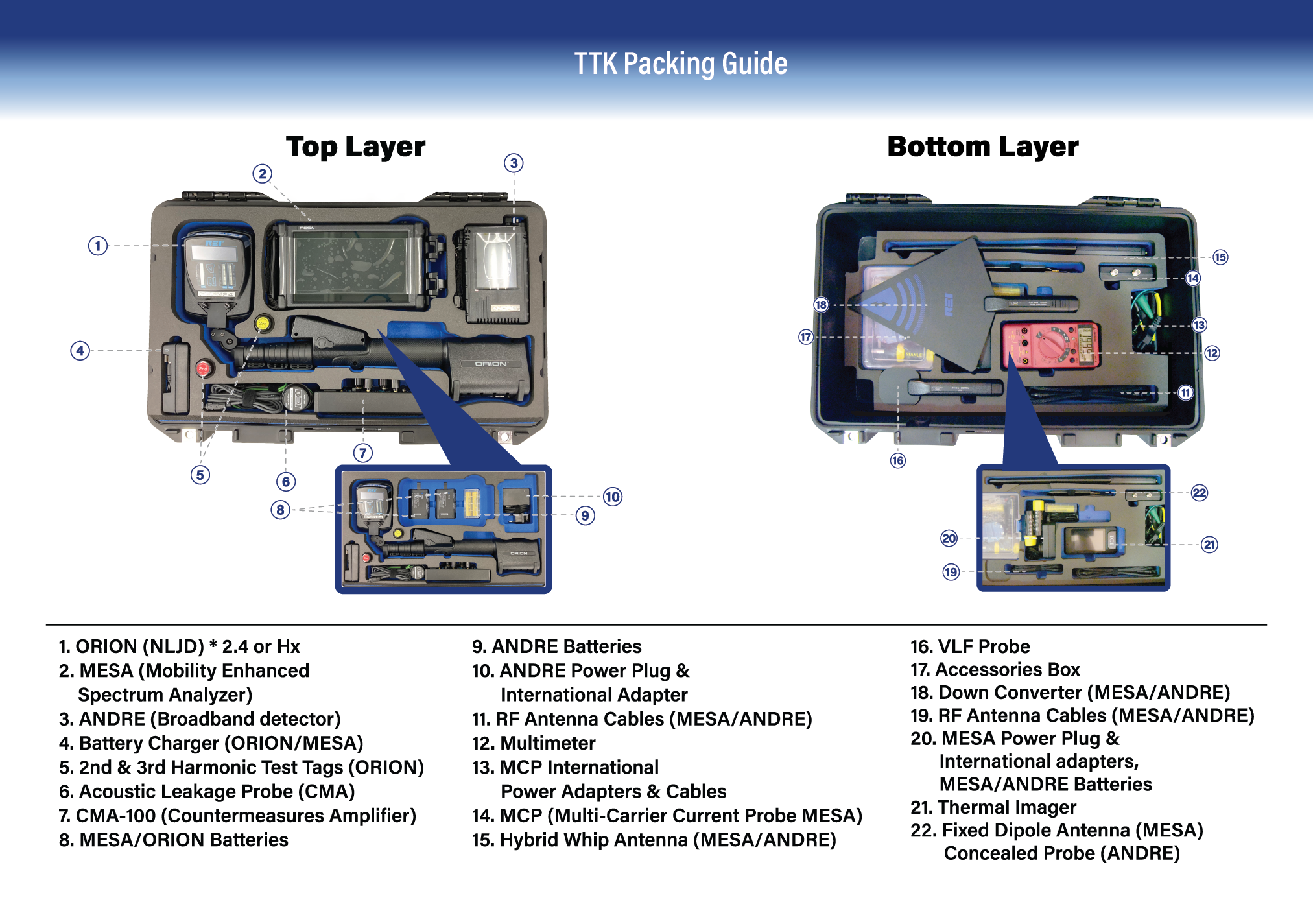

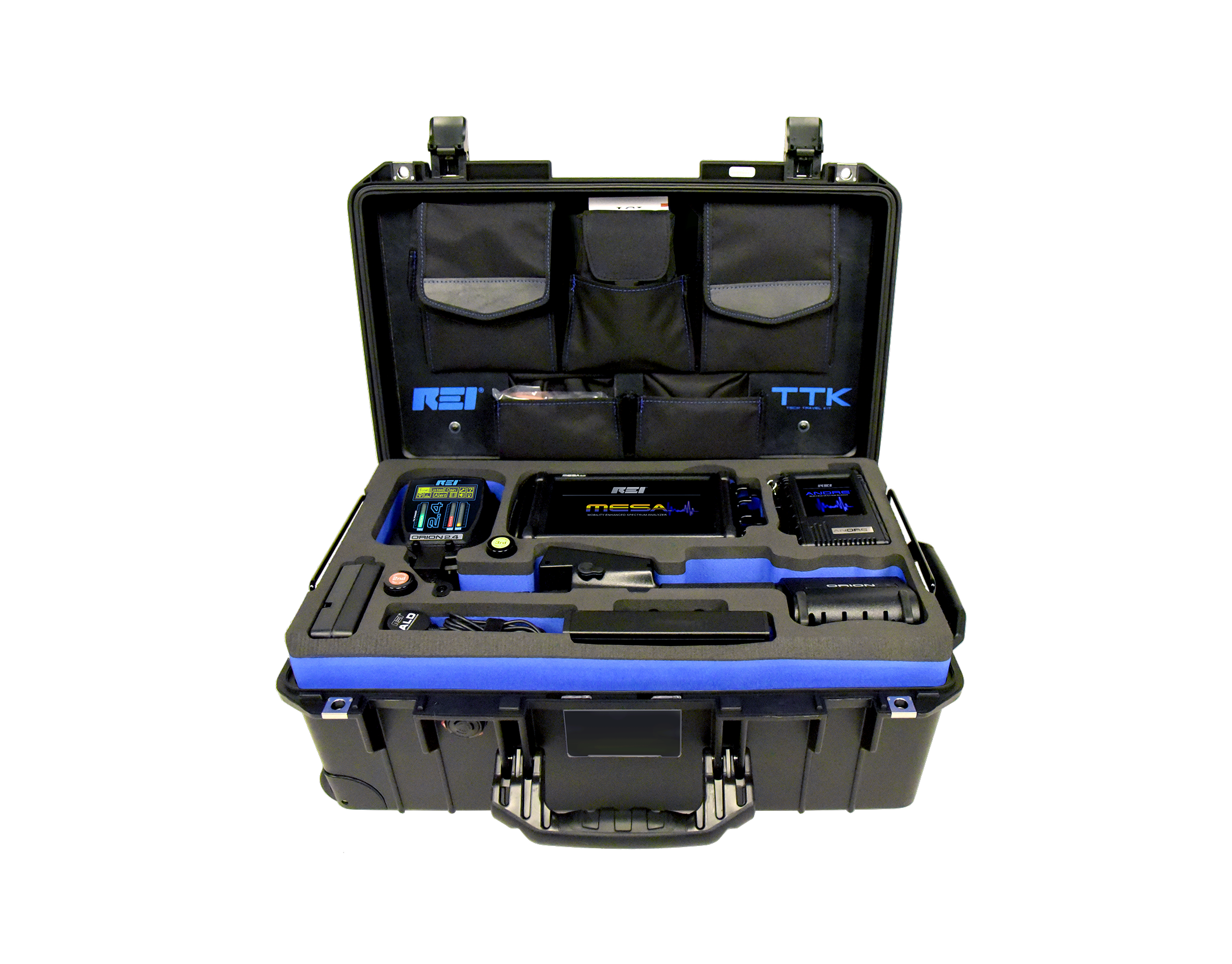

  • The REI TTK is packaged in a durable Pelican™ 1535 Air maximum carry-on size case with:

    • Two custom REI foam product insert layers

    • Quiet rolling stainless-steel bearing wheels

    • Retractable extension handle

    • Business card holder

    • Accessory pockets – lid

    • Auto purge valve – keeps water and dust out while balancing air pressure

    • Super-light proprietary HPX2™ Polymer

    • Maximum airline carry on size*

      • * Check with your airline for exact measurement and weight requirements

  • MESA 2.0 hand-held Spectrum Analyzer for portable RF analysis

    • 10kHz to 6GHz spectrum analyzer, extends to 12GHz with Downconverting Antenna

    • Sweeps 200GHz per second

    • SmartBars® Mode (Patented)

    • Mobile Bands Mode showing RF levels of customizable spans

    • WiFi and Bluetooth modes to identify access points

    • Full Touchscreen control, with visual, audible, and haptic vibration alerts

    • MCP (Multi-Carrier Probe) – Carrier Current

    • Data Logging

    • Cached Peak Function (Patent Pending)

  • ANDRE Broadband Detector for near field detection and location of RF transmitters up to 12 GHz

    • Broadband RF detection up to 12GHz with Downcoverting Antenna, plus Infrared and Visible Light

    • Histogram Display showing RF levels over periods of time

    • Signal information and band details generate a signal list of the strongest signals

  • ORION 2.4 HX Non-Linear Junction Detector for finding hidden electronics (active and inactive) (FCC 3.3W or G 6.6W)

    • Frequency band: 2.404 GHz – 2.472 GHz

    • Transmit modulation: pulsing, digital spread spectrum 1.25 MHz bandwidth

    • More than 60 available transmit channels

    • Digitally correlated 2nd and 3rd harmonic response

    • Touch screen display showing harmonic responses and a spectrum view of operation bands

    • Visual, audible, and haptic vibration alerts

  • CMA-100 Countermeasures Amplifier for detecting wired surveillance devices

    • 110dB of Gain

    • Built-in AC/DC voltmeter

    • Ability to bias voltage between -15V and +15V DC

  • Multimeter

  • Thermal Imager (U.S. only, not included in export kits)

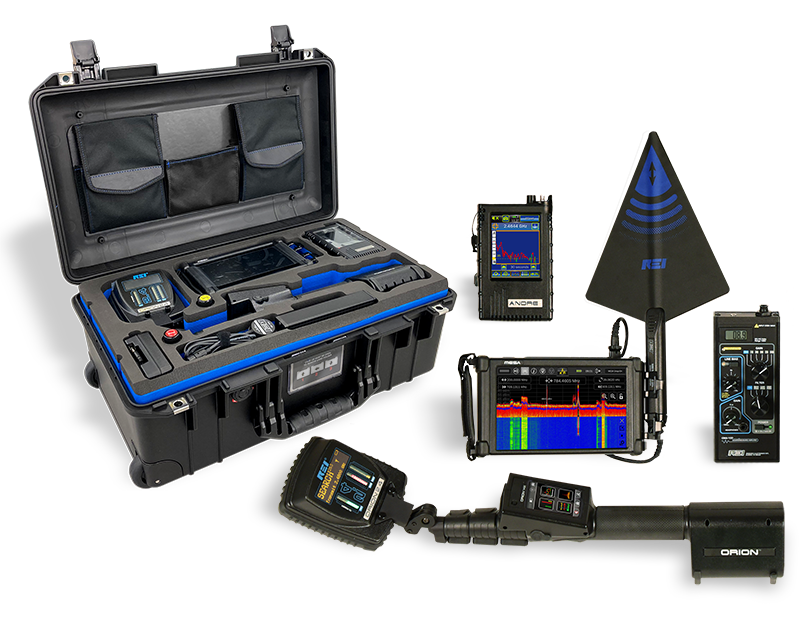

The TTK (Tactical TSCM Kit) is a carry-on, deployment-ready equipment package for the frequent traveler who needs a portable sweep kit with a lot of capability.

​

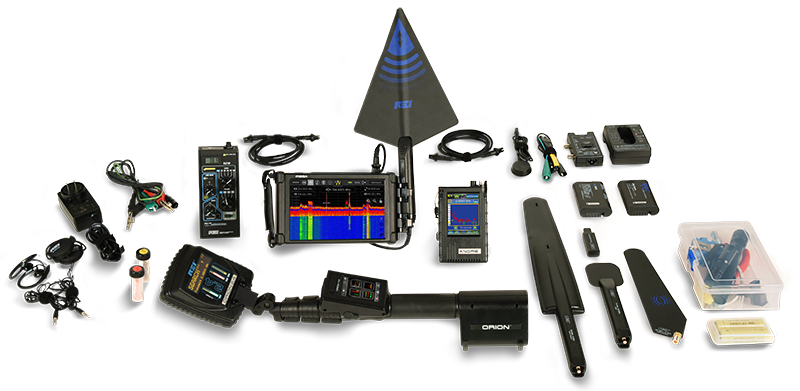

TTK weighs 25 lbs/11.5 kg and includes these proven TSCM products:

Specifications

  • Pelican 1535 Air maximum carry-on size

    • • Exterior (L×W×D) 21.96 x 13.97 x 8.98 in / 55.8 x 35.5 x 22.8 cm
      • Interior (L×W×D)20.39 x 11.20 x 7.21 in /51.8 x 28.4 x 18.3 cm
      • Complete package weighs <25 lbs/11.3 kg
      • Weight Empty 8.69 lbs (3.9 kg)
      • Padlock Hole Diameter 5/16″ (8 mm)
      • 2 Wheels

    • * Check with your airline for exact measurement and weight requirements

  • MESA 2.0  Specifications

    • Sweep speed > 200GHz/second

    • Operating frequency range: 10kHz – 6GHz/12GHz with Down Converter Antenna

    • DANL – Noise Floor: 312.5 kHz RBW with Pre-amp: -90 dBm, 9.765 kHz RBW with Pre-amp: -110 dBm

    • Detection Methods: RF, Carrier Current, Acoustic Leakage, IR/Visible Light, Ultrasonic

    • Audio Demodulation AM/FM demodulation with filter options: Auto, 200kHz, 20kHz, 5kHz

    • Alerts: Haptic, Visual, Audible

    • Supply AC:  100-240V/50-60Hz; single rechargeable Li-ion battery (includes 1 spare)

    • Run Time:   ~3 hours (typical) per battery

    • Charge time:   ~3 hours per battery (typical)

    • Operating Modes: SmartBars™, Mobile Bands, WiFi, Bluetooth, Jamming Interference Detection

  • ANDRE  Specifications

    • Frequency range: 10kHz to 6GHz (12GHz with Down Converting antenna)

    • Detection Methods: RF, Carrier Current, Acoustic Leakage, IR/Visible Light, Ultrasonic

    • Histogram display: renders signal strength display of RF levels over time

    • 3.5 in touchscreen display

    • Live audio playback

    • Extra USB charger included

  • ORION Specifications

    • 3.3 W EIRP; *G model: 6.6 W EIRP

    • Manual or auto power control

    • 2.404 GHz – 2.472 GHz frequency band

    • Digital spread spectrum 1.25MHz bandwidth

    • FCC and CE

    • Digitally correlated

    • -140dBm for 2nd and 3rd harmonics

    • Haptic, audible, and visual alerts

    • Input AC: 100-240 V, 50-60 Hz

    • Run time: >4 hours per battery (typical)

    • Charge time: 2.5 hours per battery

    • *G model available to entities, agencies, and persons not restricted by FCC. Both power level models are CE marked for public safety and security

  • CMA-100 Specifications

    • 115 dB gain in manual mode

    • Digital voltmeter, 3.5 digit, auto zero, auto polarity, +/-199.9V AC/DC

    • Battery: 9V Alkaline (5 – 30 hours typical run time)

​

01 / 05

CMA

Countermeasures Amplifier for detecting wired surveillance devices.

MULTIMETER
