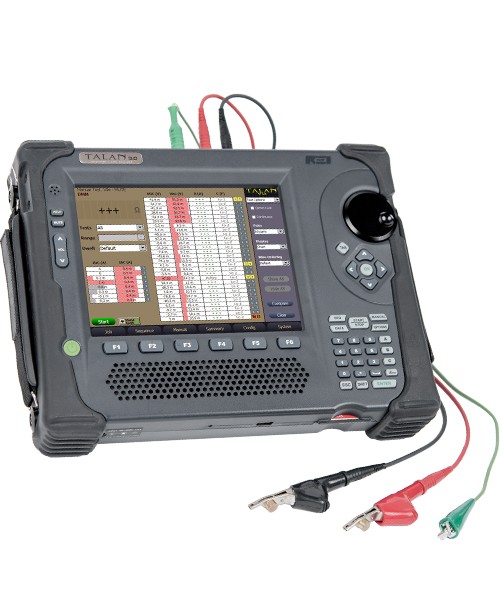

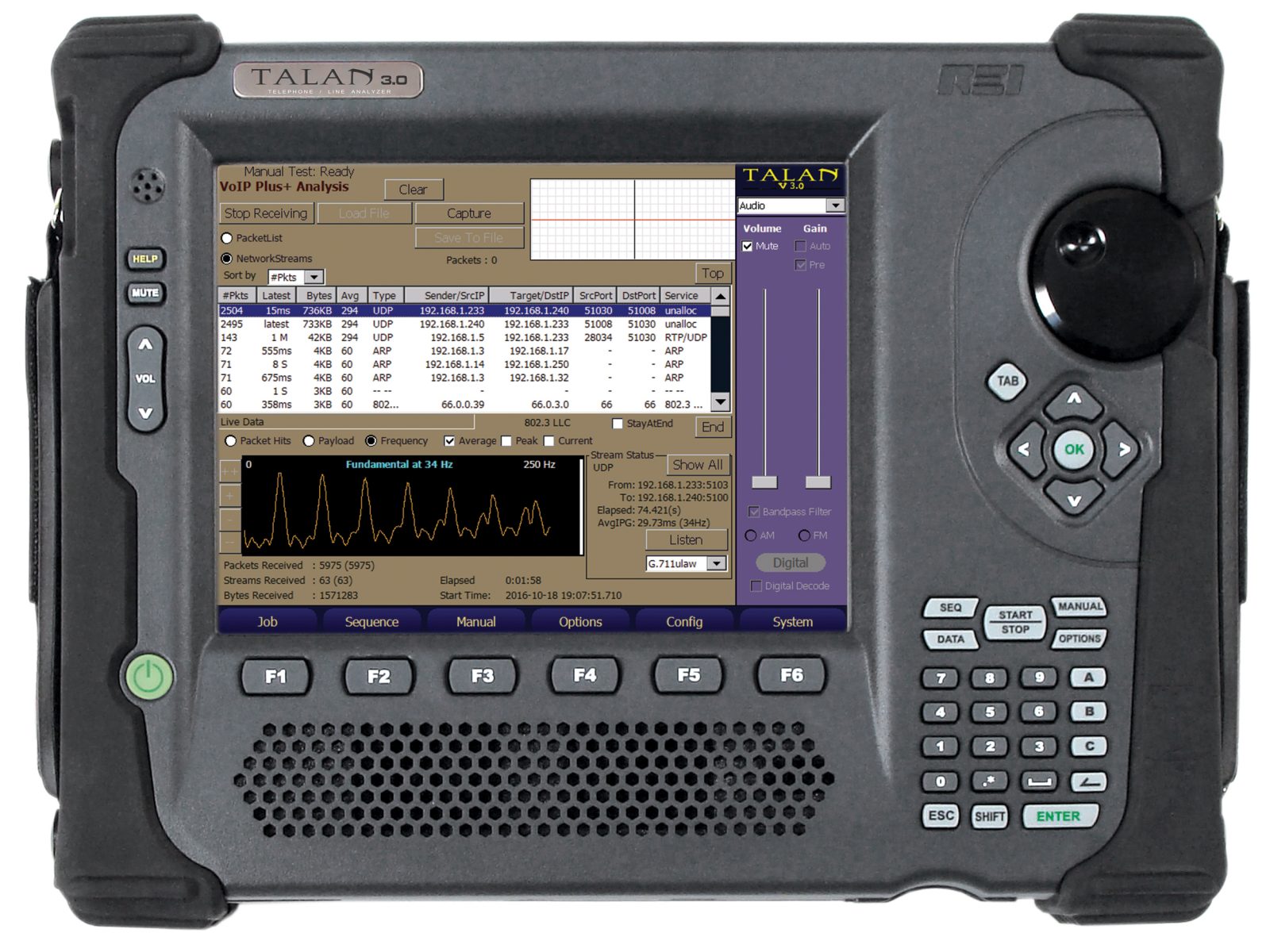

TALAN® 3.0

Telephone & Line Analyzer

Efficiency

Compares the results of multiple tests on multiple phone lines to quickly identify threatening anomalies.

Usability

 Combines several countermeasure testing capabilities into a single piece of equipment (voltage, current, resistance, capacitance, non-linear junction detection, frequency domain reflectometry, and digital demodulation technology).

Portability

Weighs only six pounds and data can be exported for further analysis and reporting.

​

​

*Older model TALANs can be converted to TALAN 3.0 but will require hardware changes. Contact us for a quote.

Features

  • Combines multiple testing capabilities into a single piece of equipment

  • Automatic internal pair switching matrix performs tests on all pair combinations

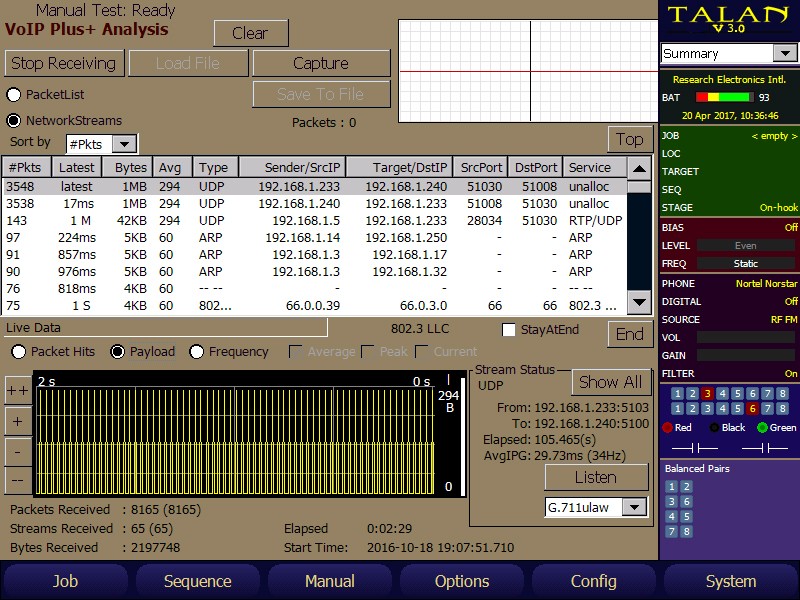

  • Extensive, advanced VoIP traffic filtering makes it easier to locate and identify suspicious packet information

  • The patent-pending Fast Fourier Transform (FFT) algorithm converts network traffic into a spectrum view, creating visually identifiable patterns not easily noticed in a traditional packet list

  • Quickly performs common test functions including:

    • Multimeter tests (voltage, current, resistance, capacitance)

    • RF Broadband Detector (up to 8 GHz)

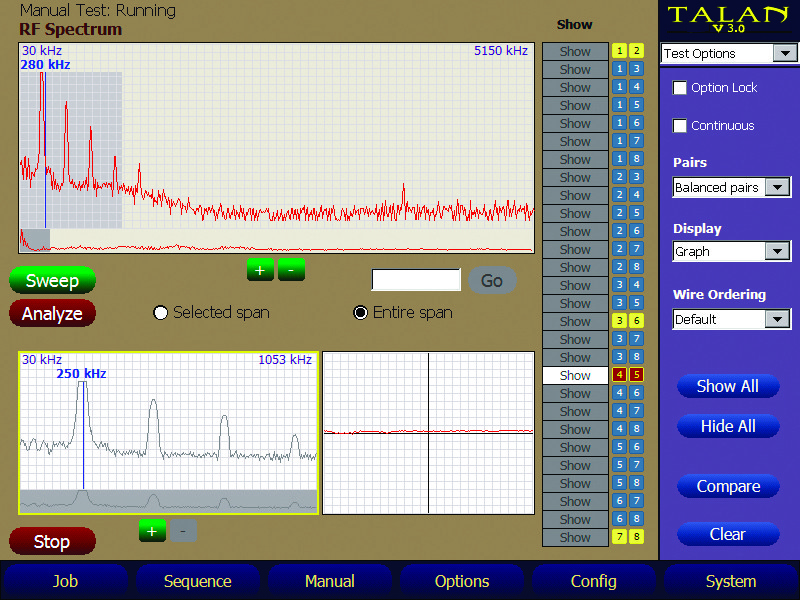

    • Spectrum Analyzer (up to 85 MHz)

    • High Gain Audio Amplifier

    • Bias Generator ±80 VDC

  • Audio Oscilloscope with active input (20 Hz to 20 KHz)

  • Digital demodulation available to confirm that the telephone line is not passing audio

  • Frequency Domain Reflectometer (FDR) to check for taps on the line

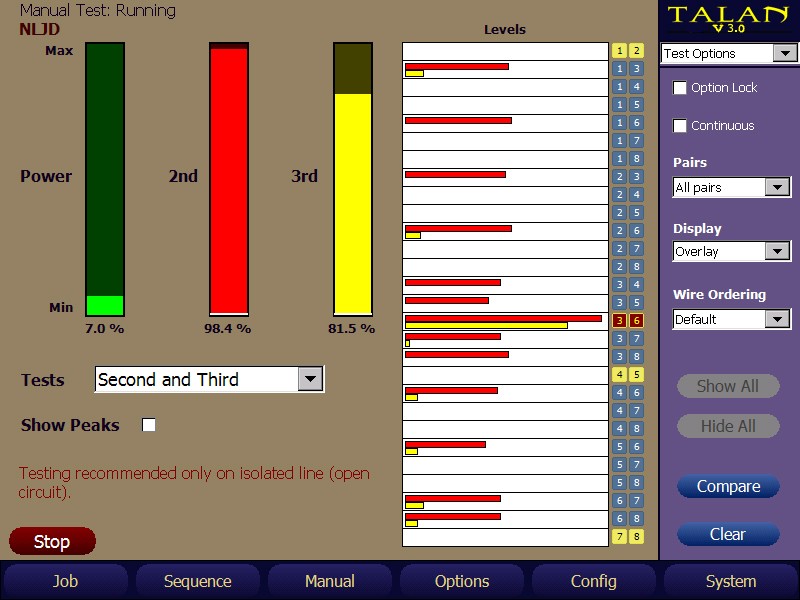

  • Non-Linear Junction Detector (NLJD) functionality to detect electronics connected to a line

  • Multi-test database system provides the ability to perform tests on all pair combinations, storing data for historical comparison and comparison against other lines

The TALAN 3.0 Telephone and Line Analyzer represents advanced capability to detect and locate illicit tampering and security vulnerabilities on digital, analog, and VoIP telephone systems. New hardware provides the ability to test twisted pairs against modern telecommunication threats including shield and ground.

Applications

  • Technical Surveillance Countermeasures (TSCM)

  • Counter Surveillance

  • Wire Tap Detection

  • Telephone Line Testing

  • Phone Line Analysis

  • Eavesdropping Detection

  • Intelligence Protection

  • Executive Protection

  • Surveillance Equipment Detection

  • Electronic Surveillance Detection

Specifications

  • CONTROL SYSTEM

    • Primary computer: 32 bit RISC processor, 520 MHz
      Internal memory: 64 MB SDRAM (OS), 64 MB Flash
      External memory: Compact Flash Type III, USB mass storage

  • DIGITAL I/O

    • Network: 10/100 Ethernet Controller for IP Packet Detection
      USB: USB Device (A Type) supports external keyboard, mouse, and USB mass storage device; USB Host (B type) for future use

  • ANALOG I/O

    • Headphone output: 3.5 mm mono connector
      Microphone input: 3.5 mm mono input

  • USER INTERFACE

    • Hard keys: 6 soft menu keys, 5 button quadrant navigation & other dedicated keys
      Encoder: high-resolution optical encoder
      Integrated touch screen with stylus
      Test inputs:

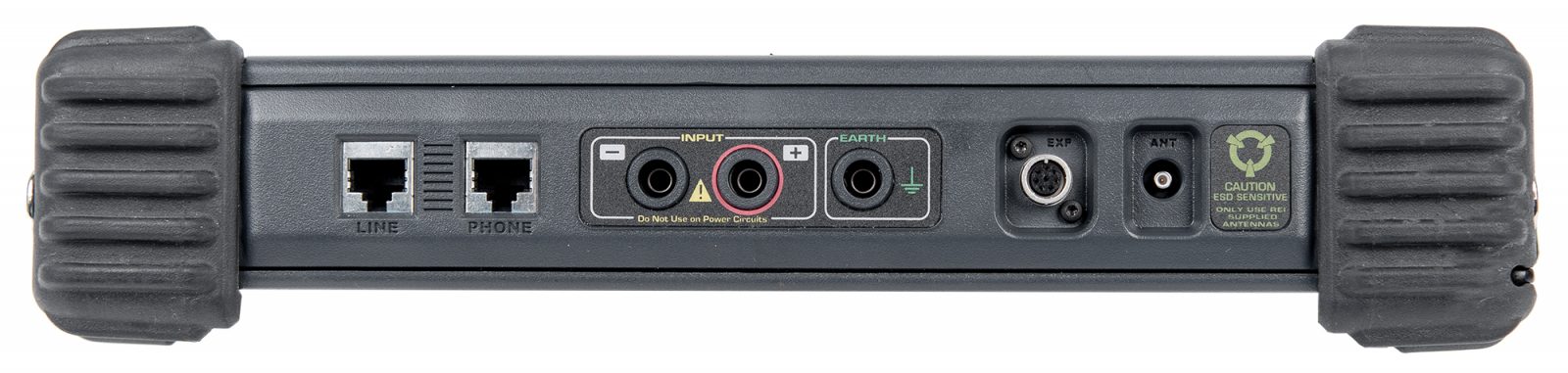

      • Dual MOD8: supports 2, 4, 6, & 8 wire modular phone jacks with shield

      • Banana type: standard sleeved sockets: ring, tip, and earth

      • SMB RF input: RF/antenna connection to 8 GHz broadband detector

      • Expansion port: supports communication & measurement for use with future accessories

    • All inputs electrically isolated

  • RF SYSTEM

    • Spectrum Analyzer:

      • Dual conversion, super-heterodyne receiver

      • Frequency range: 30 kHz to 85 MHz

      • Sweep time: 2 Seconds

      • Step size: 1 kHz

      • Bandwidth: 18 kHz

      • Sensitivity: -100 dBm

    • Broadband Detector:

      • RF SMB input: to 8 GHz

      • Line level test: 100 kHz to 600 MHz

      • Sensitivity: -65 dBm

  • DIGITAL MULTIMETER

    • Quick response auto-ranging: 500msec Sample Rate
      AC/DC Volts: 0 to 250V Maximum
      AC/DC Current: 0 to 300mA Maximum
      Resistance: 0 to 42MΩ
      Capacitance: 50pF to 40µF

  • BIAS GENERATOR

    • Optically isolated, direct digital control: high voltage DAC
      Output ceiling: ± 80 V
      Output ceiling (shield): ±65VDC, ±33VAC
      Modulation: fixed voltage, or variable rate Sine wave (10 Hz - 300 Hz)

  • AUDIO

    • Audio bandwidth: 20 Hz - 20 KHz
      Gain: Up to 80 dB total system gain (voice band)
      AGC: digitally controlled automatic gain
      Filter: analog voice band filter (300 Hz to 3 kHz)

  • POWER

    • External input: 15 VDC @ 3A
      Universal power supply: 100-240 VAC, 50-60 Hz
      Removable battery: Rechargeable Lithium ion, 4-hour runtime (typical)

  • MECHANICAL

    • Dimensions: 10 in x 12.9 in x 2.7 in (25.4 cm x 32.8 cm x 6.9 cm)
      Unit weight with battery: 6 lbs (2.7 kg)
      Case dimensions: 19.5 in x 14.9 in x 5.4 in (49.5 cm x 37.8 cm x 13.7 cm)
      Case weight including unit and accessories: 19 lbs (7.1 kg)

  • THERMAL

    • Operating temperature: 0°C to +50°C​
